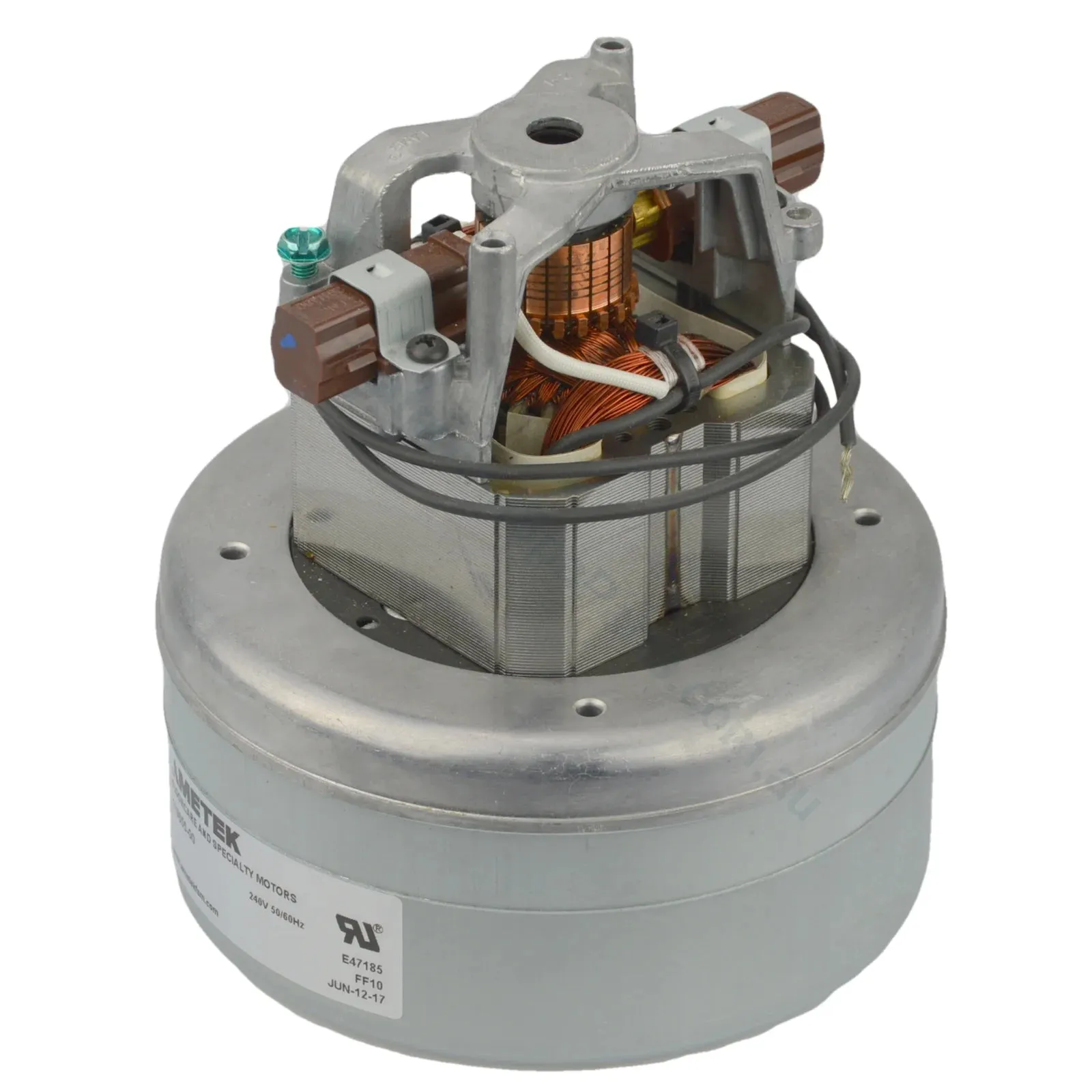

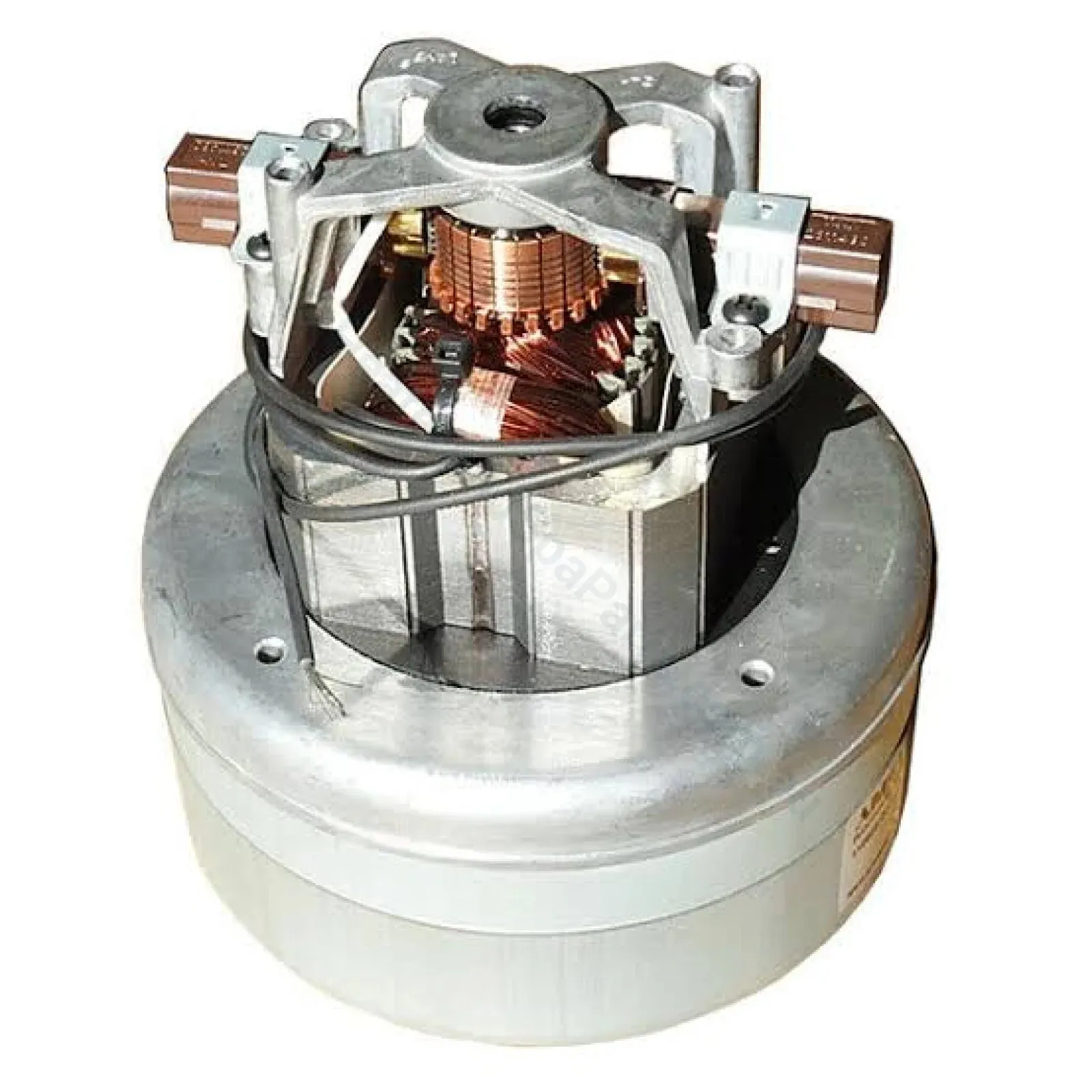

1100w 4.8A Ametek Lamb Electric Two Stage Spa Air Blower Motor. Two-stage spa air blower motor suits many spa air blowers with ratings from 1000w-1300w (Onga Dega 7A)
Specifications & Details:
- 50/60Hz
- 220-240v
- 4.8A
- 102 CFM
- 173 cubic metres/hr open head
- Approx 155 cubic metres/hr at 0.6m head
- 145mm diameter fan
- 72mm fan cover height
- 157mm overall height including motor
- 2 stage motors offer higher pressure than a single stage motor
- Suits 40 x 6mm holes or 24 x 9mm holes
Better suited to In-ground Spas or where air injectors are deeper than 600mm below water level, or for more air injectors than a standard spa. Note that these motors are used by many manufacturers, but due to various changes over the years, some slight modifications may be necessary to fit.
